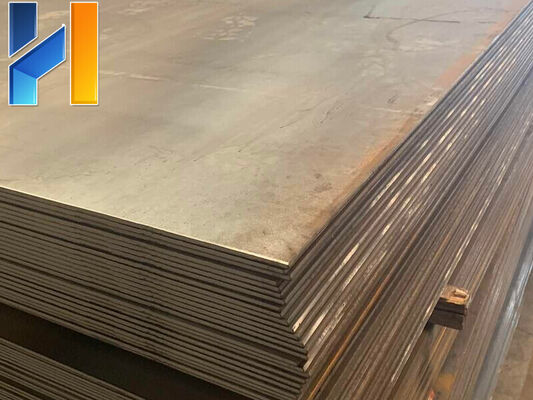

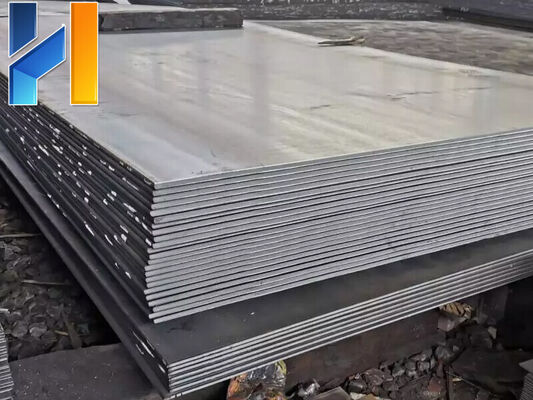

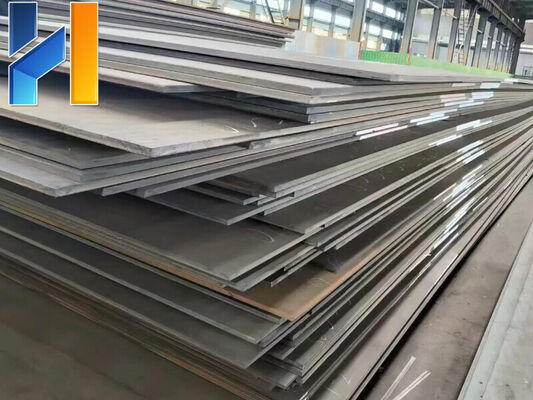

Cold Rolled And Hot Rolled Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness in JIS ASTM GB DIN EN Standard

  • Cold Rolled And Hot Rolled Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness in JIS ASTM GB DIN EN Standard
  • Cold Rolled And Hot Rolled Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness in JIS ASTM GB DIN EN Standard
  • Cold Rolled And Hot Rolled Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness in JIS ASTM GB DIN EN Standard
تفاصيل المنتج
سماكة 0.15 مم - 300 مم عرض 1250 مم، 1500 مم أو مخصص
طول 1000mm-12000mm أو حسب الطلب تقنية المدرفلة على البارد والمدلفن على الساخن
محتوى الكربون فولاذ عالي الكربون (0.60 - 1.25 بالوزن%) محتوى C 0.15 بالوزن%
محتوى سي 0.75% بالوزن محتوى MN 2.00 بالوزن%
محتوى P 0.06-0.12 بالوزن% محتوى S 0.008 بالوزن%
محتوى النحاس 0.25-0.50 بالوزن% البنية المجهرية بيرليت
الدرجات المادية ASTM: الدرجة B، C، D، A36، 36-80؛ إن: S185-S690Q؛ جي آي إس: SS330-SPHE صلابة عالي
ليونة قليل
إبراز

Cold Rolled And Hot Rolled Carbon Steel Plate,0.15mm-300mm Thickness Carbon Steel Sheet,JIS ASTM GB DIN EN Standard Steel Plate

,

0.15mm-300mm Thickness Carbon Steel Sheet

,

JIS ASTM GB DIN EN Standard Steel Plate
اترك رسالة
منتوج وصف
Carbon Structural Steel Plate

Discover our high-quality Carbon Structural Steel Plates, engineered with less than 0.8% carbon content. These plates offer superior mechanical properties due to their reduced sulfur, phosphorus, and non-metallic inclusion content, making them ideal for demanding industrial applications.

Key Advantages
  • Enhanced Mechanical Properties
  • Superior Durability
  • Versatile Applications
  • Industry-Grade Quality
Target Industries
Construction Automotive Manufacturing Heavy Machinery Shipbuilding
Product Specifications
Product Name Standard Material Grades Dimensions
Carbon steel sheet / steel plate JIS, AISI, ASTM, GB, DIN, EN ASTM: Grade B, C, D, A36, 36, 40, 42, 50, 55, 60, 65, 80
EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q
JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE 		Thickness: 0.15mm-300mm
Width: 1250mm, 1500mm or custom
Length: 1000mm-12000mm or custom
Technique Cold Rolled And Hot Rolled
Weathering Steel Grades (Cor-ten & Equivalents)
Grade C (wt.%) Si (wt.%) Mn (wt.%) P (wt.%)
Cor-ten A0.120.25-0.750.20-0.500.01-0.2
Cor-ten B0.160.3-0.50.8-1.250.03
SPA-H0.120.2-0.750.600.07-0.15
9CuPCrNi-A0.120.2-0.750.20-0.500.07-0.15
Q235NH0.130.10-0.400.20-0.600.03
Q295NH0.150.10-0.500.30-1.000.03
Q355NH0.160.50.50-1.500.03
Q415NH0.120.651.100.025
Q460NH0.120.651.500.025
Q500NH0.120.652.00.025
Q550NH0.120.652.00.025
Q265GNH0.120.10-0.400.20-0.500.07-0.12
Q295GNH0.120.10-0.400.20-0.500.07-0.12
Q310GNH0.120.25-0.750.20-0.500.07-0.12
Q355GNH0.120.20-0.751.000.07-0.15
Q345GNHL0.120.25-0.750.20-0.500.07-0.15
Q295GQR20.120.10-0.400.20-0.500.06-0.12
Q295GQR30.120.20-0.400.25-0.550.06-0.12
Q345NQR20.120.25-0.750.20-0.500.06-0.12
Q345NQR30.120.20-0.500.25-0.700.06-0.12
Q400NQR10.120.751.100.025
Q450NQR10.120.751.500.025
Q500NQR10.120.752.000.025
Q550NQR10.160.752.000.025
Chemical Composition & Properties by Carbon Content
Carbon Content (wt.%) Microstructure Properties Examples Standards
Low-carbon steel (< 0.25) Ferrite, pearlite Low hardness and cost. High ductility, toughness, machinability and weldability Low hardness and cost. High ductility, toughness, machinability and weldability AISI 304, ASTM A815, AISI 316L
Medium-carbon steel (0.25 – 0.60) Martensite Low hardenability, medium strength, ductility and toughness Low hardenability, medium strength, ductility and toughness AISI 409, ASTM A29, SCM435
High-carbon steel (0.60 – 1.25) Pearlite High hardness, strength, low ductility High hardness, strength, low ductility AISI 440C, EN 10088-3
